Myeloid DRP1 deficiency limits revascularization in ischemic muscles via inflammatory macrophage polarization and metabolic reprogramming
Shikha Yadav, Vijay C. Ganta, Sudhahar Varadarajan, Vy Ong, Yang Shi, Archita Das, Dipankar Ash, Sheela Nagarkoti, Malgorzata McMenamin, Stephanie Kelley, Tohru Fukai, Masuko Ushio-Fukai
Shikha Yadav, Vijay C. Ganta, Sudhahar Varadarajan, Vy Ong, Yang Shi, Archita Das, Dipankar Ash, Sheela Nagarkoti, Malgorzata McMenamin, Stephanie Kelley, Tohru Fukai, Masuko Ushio-Fukai
View: Text | PDF
Research Article Angiogenesis Inflammation

Myeloid DRP1 deficiency limits revascularization in ischemic muscles via inflammatory macrophage polarization and metabolic reprogramming

  • Text
  • PDF
Abstract

Macrophages play a crucial role in promoting perfusion recovery and revascularization after ischemia through antiinflammatory polarization, a process essential for the treatment of peripheral artery disease (PAD). Mitochondrial dynamics, particularly regulated by the fission protein DRP1, are closely linked to macrophage metabolism and inflammation. However, the role of DRP1 in reparative neovascularization remains unexplored. Here, we show that DRP1 expression was increased in F4/80+ macrophages within ischemic muscle on day 3 after hind limb ischemia (HLI), an animal model of PAD. Mice lacking Drp1 in myeloid cells exhibited impaired limb perfusion recovery, angiogenesis, and muscle regeneration after HLI. These effects were associated with increased proinflammatory M1-like macrophages, p-NF-κB, and TNF-α, and reduced antiinflammatory M2-like macrophages and p-AMPK in ischemic muscle of myeloid Drp1–/– mice. In vitro, Drp1-deficient macrophages under hypoxia serum starvation (HSS), an in vitro PAD model, demonstrated enhanced glycolysis via reducing p-AMPK as well as mitochondrial dysfunction, and excessive mitochondrial ROS production, resulting in increased proinflammatory M1-gene and reduced antiinflammatory M2-gene expression. Conditioned media from HSS-treated Drp1–/– macrophages exhibited increased proinflammatory cytokine secretion, leading to suppressed angiogenesis in endothelial cells. Thus, macrophage DRP1 deficiency under ischemia drives proinflammatory metabolic reprogramming and macrophage polarization, limiting revascularization in experimental PAD.

Authors

Shikha Yadav, Vijay C. Ganta, Sudhahar Varadarajan, Vy Ong, Yang Shi, Archita Das, Dipankar Ash, Sheela Nagarkoti, Malgorzata McMenamin, Stephanie Kelley, Tohru Fukai, Masuko Ushio-Fukai

×

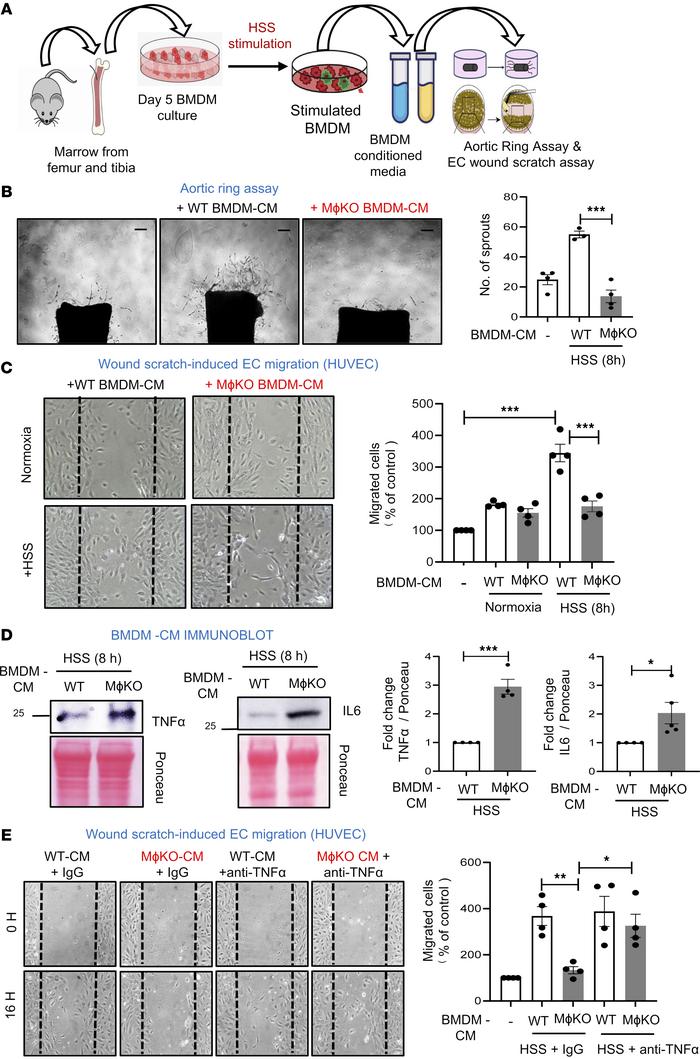

Figure 6

Conditioned medium (CM) from HSS-stimulated WT BMDMs, but not from Drp1KO BMDMs, promoted angiogenesis in ECs.

Options: View larger image (or click on image) Download as PowerPoint
Conditioned medium (CM) from HSS-stimulated WT BMDMs, but not from Drp1K...
(A) Schematic representation of the isolation of CM from HSS-stimulated mouse BMDMs and its application on aortic ring assay and confluent human umbilical vein ECs (HUVECs) subjected to a scratch-wound assay. (B) Aortic ring assay showing the number of sprouts emerging from 1-mm aortic rings derived from WT mice, embedded on Matrigel, and incubated with CM (20 ng/mL) from HSS-stimulated WT or MɸDrp1KO (MɸKO) BMDMs for 5 days. Scale bars: 1 mm (n = 4, 1-way ANOVA followed by Tukey’s multiple-comparison test). (C) EC migration using the scratch-wound assay on confluent HUVEC monolayers treated with CM from WT or MɸKO BMDMs exposed to normoxia or HSS for 8 hours. Representative bright-field images (left) and quantification of number of migrated cells per field (right) in HUVECs at 16 hours after wounding. Scale bars: 20 μm (n = 4, 1-way ANOVA followed by Tukey’s multiple-comparison test). (D) Representative protein expression of proinflammatory markers TNF-α and IL-6 and respective ponceau staining in CM from WT or MɸKO BMDMs stimulated with HSS for 8 hours. Blots were run separately on different gels using the same biological samples. Right panels show quantification (n = 4, unpaired, 2-tailed Student’s t test). (E) EC migration using the scratch-wound assay on confluent HUVEC monolayers treated with CM from WT or MɸKO BMDMs stimulated with HSS for 8 hours in the presence of either IgG (control) or anti–TNF-α antibody (1 μg/mL). Representative bright-field images (left) and quantification of number of migrated cells per field (right) for HUVECs at 0 hours and 16 hours after wounding. Scale bars: 20 μm (n = 4, 1-way ANOVA followed by Bonferroni’s multiple-comparison test). Data are mean ± SEM. *P < 0.05, **P < 0.01, ***P < 0.001.
