ATP7A-fibulin-4 complex delivers copper in the Golgi to activate LOX in renal fibrosis
Wenqian Zhou, Yan Zheng, Yuqing Liu, Jing Liu, Yiguo Liu, Yangyang Niu, Ying Yu, Xiaoqin Zhang, Yingying Zhang, Chen Yu
Wenqian Zhou, Yan Zheng, Yuqing Liu, Jing Liu, Yiguo Liu, Yangyang Niu, Ying Yu, Xiaoqin Zhang, Yingying Zhang, Chen Yu
View: Text | PDF
Research Article Cell biology Nephrology

ATP7A-fibulin-4 complex delivers copper in the Golgi to activate LOX in renal fibrosis

  • Text
  • PDF
Abstract

Lysyl oxidase (LOX) is a copper-dependent monoamine oxidase whose primary function is the covalent cross-linking of collagen and elastin in the extracellular matrix (ECM). However, the regulation of LOX activity in renal fibrosis is not well understood. Here, our study showed that (a) LOX expression and ECM cross-linking were markedly increased in fibrotic kidneys. Reduction of copper levels in the Golgi apparatus by treatment with the copper chelator tetrathiomolybdate or by specific knockdown of copper transporter 1 (CTR1) decreased LOX activity and ameliorated renal fibrosis. (b) Overexpression of ATP7A caused an elevation of copper ions within the Golgi apparatus, resulting in increased LOX activity and enhanced ECM crosslinking, thereby promoting the progression of renal fibrosis. Knockdown of ATP7A showed the opposite result. (c) FBLN4 was essential for the ATP7A-mediated transfer of copper to LOX and formed a ternary complex of ATP7A-FBLN4-LOX. Our research revealed that high ATP7A expression induced copper overload in the Golgi apparatuses. FBLN4 then assisted ATP7A in transporting this excess copper to LOX, resulting in LOX overactivation. This, in turn, catalyzed the cross-linking of ECM components, thereby accelerating renal fibrosis.

Authors

Wenqian Zhou, Yan Zheng, Yuqing Liu, Jing Liu, Yiguo Liu, Yangyang Niu, Ying Yu, Xiaoqin Zhang, Yingying Zhang, Chen Yu

×

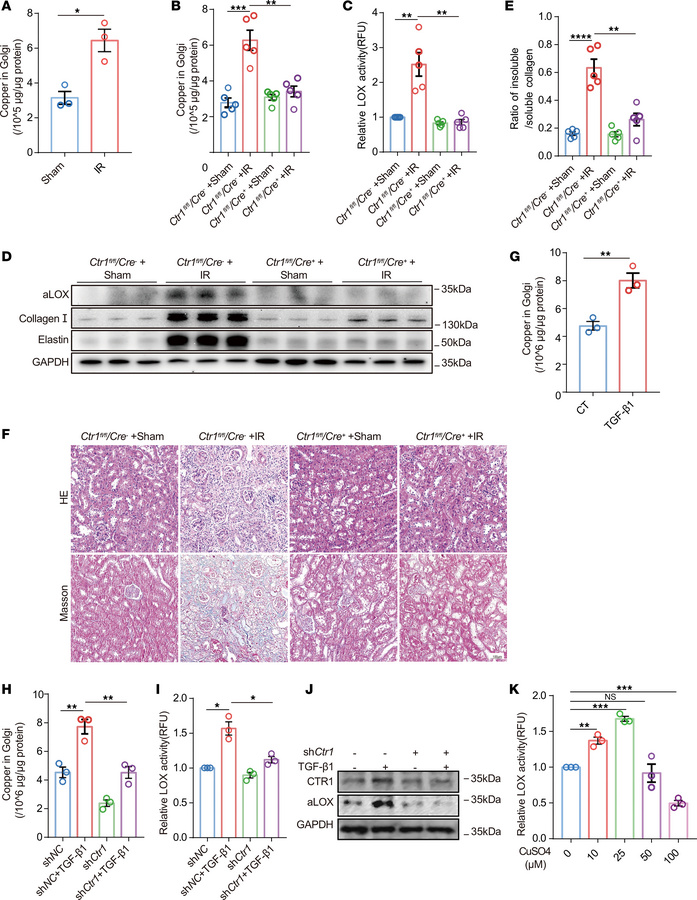

Figure 2

Reducing Golgi copper ion levels by downregulation of CTR1 decreases LOX activity and alleviates renal fibrosis.

Options: View larger image (or click on image) Download as PowerPoint
Reducing Golgi copper ion levels by downregulation of CTR1 decreases LOX...
(A) The copper level was detected in the Golgi apparatus of kidney tissue collected from an IR-induced mouse model (n = 3). For the analyses of Ctr1-manipulated mice, Ctr1fl/fl/Cre– and Ctr1fl/fl/Cre+ mice were randomly divided into the following 4 groups (n = 5/each group): Ctr1fl/fl/Cre– mice + sham; Ctr1fl/fl/Cre– mice + IR; Ctr1fl/fl/Cre+ mice + sham; and Ctr1fl/fl/Cre+ mice + IR (B–F). (B) Inductively coupled plasma mass spectrometry (ICP-MS) analysis of copper concentrations of Golgi apparatus in kidney tissues. (C) LOX activity in kidney tissues was determined using the Fluorometric Lysyl Oxidase Assay Kit. (D) Western immunoblots of the expression of aLOX, collagen I, and elastin levels in mouse kidneys. (E) The ratio of insoluble/soluble collagen was analyzed in kidneys collected from IR-induced mice models. (F) Representative images of H&E and Masson’s trichrome staining of kidney sections. Original magnification, ×200. Scale bar: 100 μm. (G) The copper level was detected in the Golgi apparatus of NRK-52E cells treated with or without TGF-β1 (n = 3). (H) The copper level was detected in the Golgi apparatus of NRK-52E cells treated with TGF-β1 after downregulation of Ctr1(n = 3). (I) LOX activity was determined in the culture medium of NRK-52E cells treated with TGF-β1 after downregulation of Ctr1 using the Fluorometric Lysyl Oxidase Assay Kit (n = 3). (J) Western immunoblots analysis of aLOX and CTR1 in NRK-52E cells treated with TGF-β1 after downregulation of Ctr1 (n = 3). (K) LOX activity in NRK-52E cells treated with multiple concentrations of copper sulfate was determined using the Fluorometric Lysyl Oxidase Assay Kit (n = 3). Data are shown as the mean ± SEM. Statistics used included a 2-tailed t test (2 groups, in A and G) or 1-way ANOVA (multiple groups, in B, C, E, H, I, and K). *P < 0.05, **P < 0.01, ***P < 0.001, ****P < 0.0001.
